Reptilia ROF-45 tähtäinjalusta, 30 mm

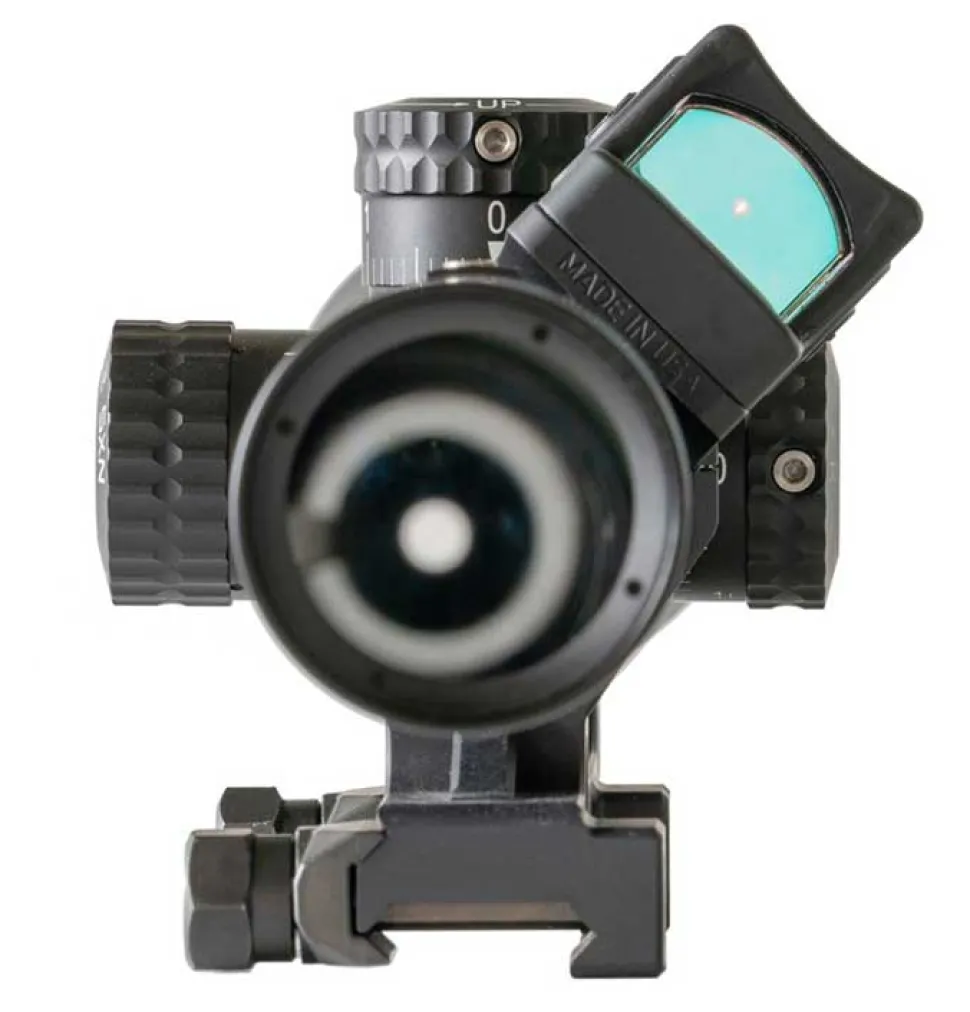

You like it tilted? This is the best way to mount a red dot sight on your Reptilia AUS Mount at 45 degrees! This mount is compatible with Trijicon RMR, SRO, and other optics that use the same footprint – check the list for examples. This mounting piece also fits the Geissele Super Precision scope mount.

• Simple and solid construction
• Low profile and sight line close to scope

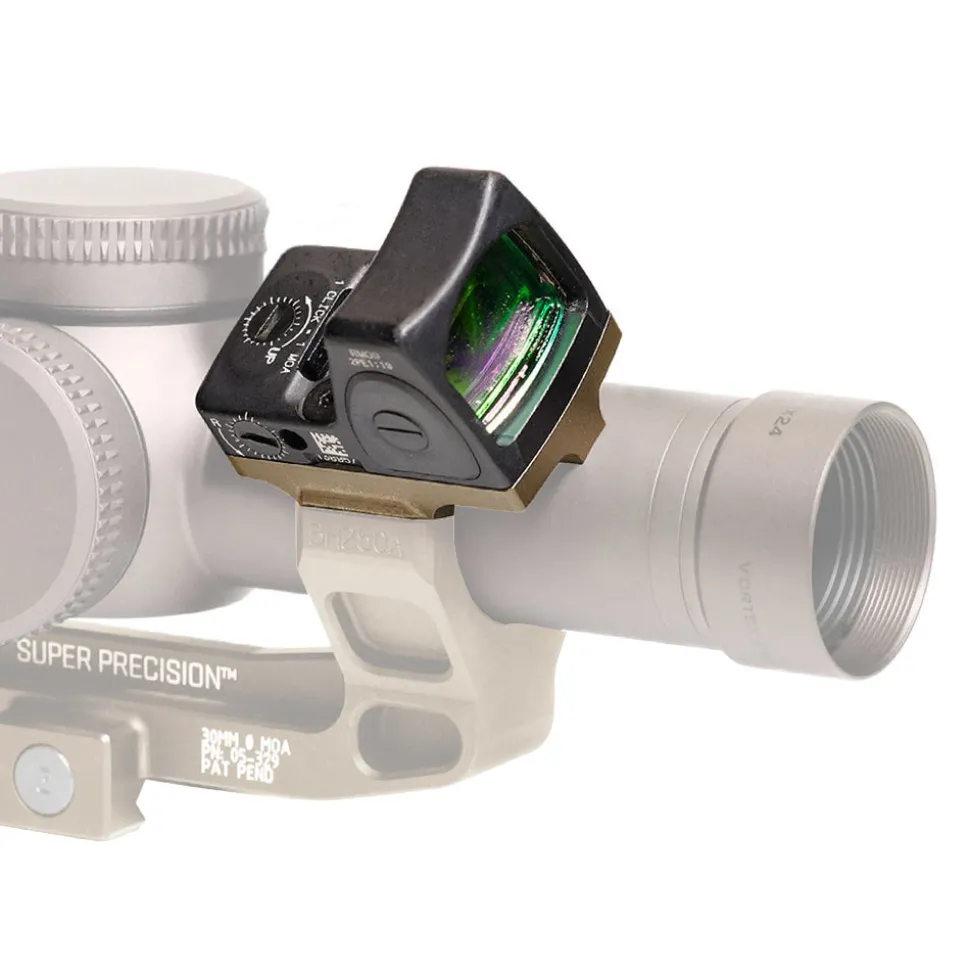

This is compatible with 30mm Reptilia AUS and Geissele Super Precision mounts, replacing the top cap of the forward scope ring. Available in two colors: black and FDE.

Why a Secondary Sight?

• In tactical real-world situations as well as sport shooting and hunting, you may need to shoot accurately both at a distance and quickly at close range – for this purpose, a quick-use red dot sight is installed on the firearm in addition to a magnifying optic
• A secondary sight allows you to keep a low-power variable optic (LPVO) pre-set to a higher magnification, speeding up transitions between close and distant targets
• Another use is, for example, to zero subsonic .300BLK rounds for the red dot and supersonic rounds for the magnifying optic (or vice versa)
• Snipers and designated marksmen often have a secondary sight alongside a larger optic, especially in semi-automatic rifles
• A red dot sight or such will also enable you to aim with your scoped rifle while using NVGs

Features

Some prefer to keep the secondary sight on the side of the weapon, tilting the rifle to bring the sight picture into view – others prefer to mount the sight at twelve o’clock, aiming over the magnifying optic without tilting the rifle. This mount represents the former style.

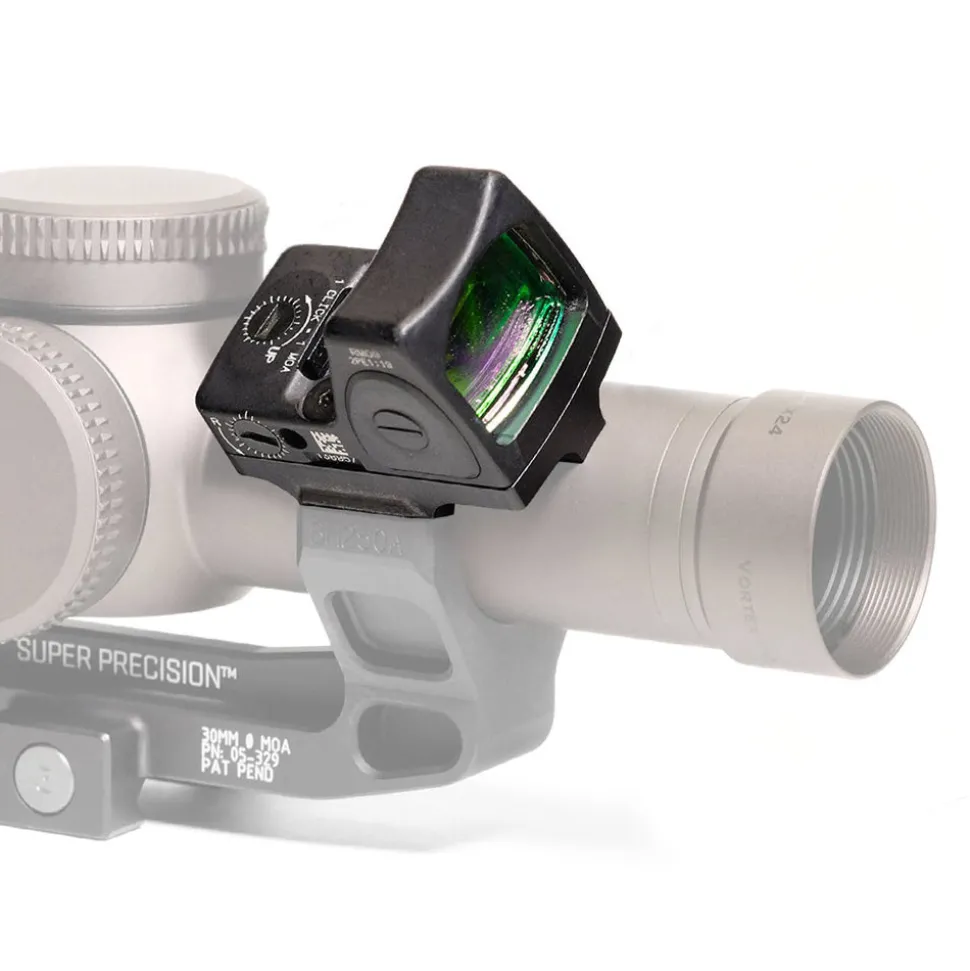

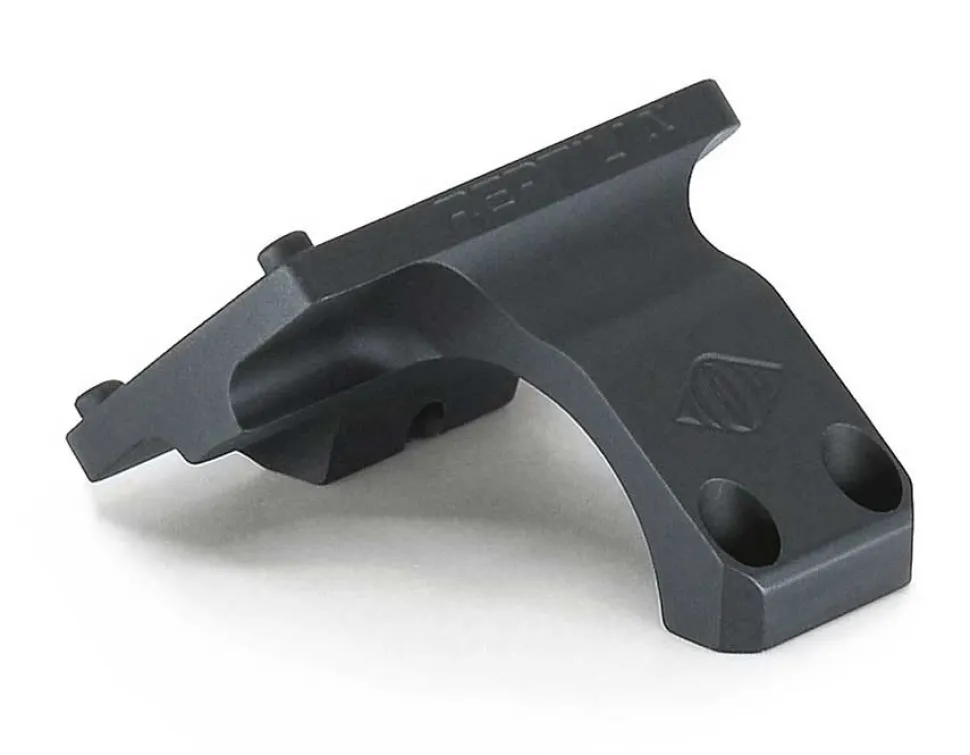

The Reptilia ROF-45 replaces the forward top ring cap on your AUS/Geissele mount. It uses the existing screws of the optic mount’s forward scope ring (T15 Torx). The ROF-45 is machined from a single piece of 7075-T6 aluminum and is finished with MIL-STD Type III Class 2 hard anodizing.

• Machined from 7075-T6 aluminum
• MIL-STD Type III Class 2 hardcoat anodized
• Weighs 28 g / 1.0 oz. (replaces the top ring cap of the scope mount)
• Compatible with 30mm Reptilia AUS and Geissele Super Precision optic mounts
• Made in the USA

If you prefer your secondary sight to be mounted at 12 o’clock position, check out the Reptilia ROF-90 (for Aimpoint Micro footprint).

Like all Reptilia products, the ROF mounts are made in the USA and come with a lifetime warranty against workmanship and material defects.

Compatibility

This ROF-45 mount is compatible with at least these optics:

• Trijicon: RMR, SRO
• Holosun: HS407, HE407, HS507, HE507, HE508

Included in the Package

• ROF-45 mount
• Two T10 Torx screws for mounting the red dot sight

Recommended Torque Specs

What’s torque, you ask? In firearm installations, it’s advisable to follow the torque values provided by the manufacturers – that is, how tight the screws should be fastened. So, get a torque wrench with a range of about 0-70 in-lbs / 0-8 Nm! The scope ring screws are fastened to the same torque as without the ROF, 15 in-lbs / 1.7 Nm.

Note: Your red dot sight is attached to the ROF with screws provided with the mount, according to the torque specs of your sight – so check the specs from your sight’s manual or the manufacturer. Typically, the torque is around 12 in-lbs / 1.4 Nm (Aimpoint Micro), so the force needed is quite minimal. If you overdo it, you might damage something and have a bad time.

Installation Instructions

Here’s an installation video. Below are step-by-step written instructions.

Tools Required

Attaching ROF-45 to AUS Mount

Installing Red Dot Sight on ROF-45 Mount
